Add Walls Using Sum of Dimensions
Written by Bill Wolff
Updated at March 6th, 2025
Purpose |
Create walls by using the sum of dimensions entered in the Layout Commands field |
Prerequisites |
A layout |
|
Steps
|

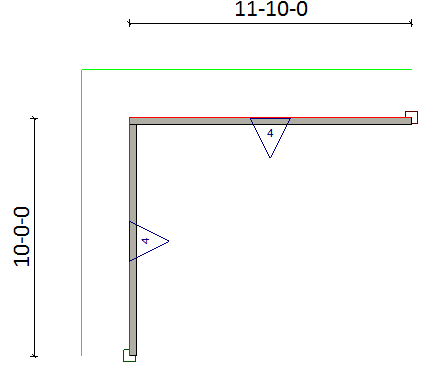

For example: The above command creates an 11-10-00 wall to the right.
Use the U,D,L,R keys or the arrow keys to indicate direction of the wall You must include a space before and after the plus + and minus - operators. The input wall must be in a single segment, not divided into multiple segments (a segment for each input dimension). Negative sums can be used. For example if r -4 is input, a 4' wall is created in the left direction. |
| Related Topics | Wall Input |
Notes:
